Calling Card Launch Flow

    Articles related to customization are written for a technical audience who have experience in web development. Knowledge of HTML, CSS, and JavaScript are required.

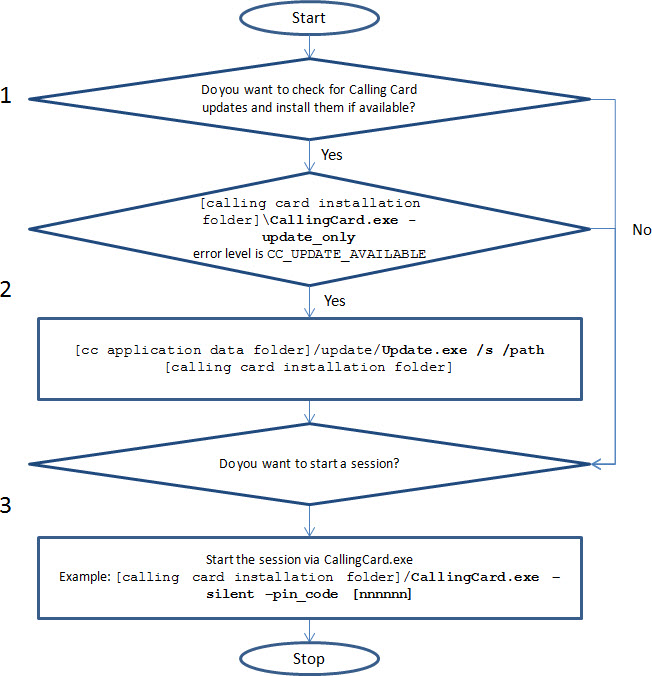

    This flowchart illustrates implementation options for CallingCard.exe and Updater.exe.

    1. Do you want to check for Calling Card updates?

      Result: Set your tool to run CallingCard.exe -update_only. This checks for a newer version of the Calling Card. If a newer version is available, then the application closes with a CC_UPDATE_AVAILABLE return code.

    2. Install updates.

      Result: If a newer version was found, you can set your tool to install the update by running Update.exe /s /path [installation directory], where the installation directory is the existing Calling Card directory.

      Important: Installation must be executed with administrator rights.

    3. Do you want to start a session?

      Result: You can set the session to start using CallingCard.exe with appropriate parameters. For example:

      • Start a PIN code session: CallingCard.exe -silent -pin_code [nnnnnn]
      • Start a channel session: CallingCard.exe -silent -channel

      In both cases the Calling Card is only displayed when session status changes to Waiting for Technician.

    Article last updated: 27 September, 2022
